How can I set up a Team Members entity with the related security?

Project Managers often want to record a list of their project team members, specifying who will play which role during the life span of their project. PPO's custom entities allow for a Team Members entity to be set up to assist with managing team members and their respective roles. In addition, the access rights of team members on PPO can be limited to only the projects where with which they are involved.

This article will explain all aspects of setting up a Team Members entity - from configuring the entity itself to setting up related security for team members to filtering your employee list fields to only show team members.



Part 1: Configuring a Team Members entity
Step 1: Put the entity in use

Go to Administration >> Data Fields and activate one of the custom entities available, as explained in the following knowledge base article.


Once the entity name has been specified and the entity has been put in use, configure the Team Members entity as follows:


Recommended fields include:

  • Team Member - this is an employee field, showing the name of the team member; and
  • Role - this is a custom list showing the various roles making up the project team.

Extra fields can be added as required. For details on how to set up Data Fields, see the following knowledge base article.

Also remember to amend the relevant user groups to allow access to the Team Members entity. For more details on setting up user group settings, see the following knowledge base article.



Part 2: Specify which projects the team member can see

Step 1: Determine each team members' projects

In order to set up access control to allow each team member to only see their own projects, a calculated field needs to be set up on the Projects entity. This calculated field will dynamically check which projects the user (person who is logged onto PPO) is a team member on. This field will show "Yes" for all projects where the logged on user is a team member.

This calculation will be used in conjunction with a user group filter in the next step to define the team members' access rights.

To set up the calculation, set up the field as follows:


The formula to use is the following:

CASE WHEN EXISTS (SELECT *FROM tblCustomEntity5 WHERE MasterKey IS NULL AND CE5ProjectKey = ProjectKey AND V01 = {UserEmployeeKey}) THEN -1
ELSE 0 END

Remember to amend the calculation to refer to the applicable field and entity keys:

  • CustomEntity5 - this needs to be replaced by the custom entity key for the configured Team Members entity;
  • CE5ProjectKey - this needs to be replaced by the project key for the configured Team Members entity;
  • V01 - this is the field name of the team member (employee list field) on the Team Members entity.

For details on setting up calculated fields, see the following FAQ.



Step 2: Set up the user group (security) filter

Using the calculated field created in step 2, the administrator can now set up a user group filter that will allow each team member to see only their specific projects.

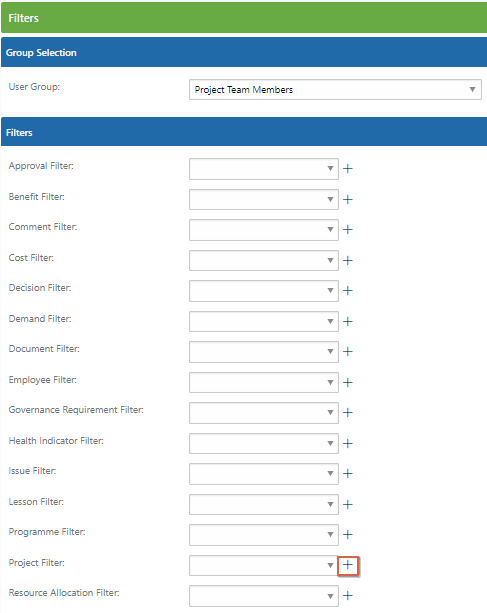

To set this up go to Administration >> Filters and select the required user group:


Click on the Add Project Filter icon and set up the filter as follows:


For full details on setting up filters, see the following knowledge base article.

This filter will then ensure that all users in the Team Members user group will see only the projects on which they have been selected as team members.



Part 3: Specify which projects the team members are available on

Administrators can set up filters on employee lists to only allow Team Members on the project to be assigned to tasks, issues, risks and other items. By setting up this filter, only resources loaded as team members’ names will appear on the employee lists for the specified project.

Step 1: Determine each project’s team members

In order to set up a filter to allow only team members to be listed in the employee lists, a calculated field needs to be set up on the Employees entity. This calculated field will dynamically check which employees are listed as team members on projects and if the user (person who is logged onto PPO) is a team member.

This calculation will be used in conjunction with a shared filter on the employee entity. This will restrict the user to for example only assign Risks to other users who are team members on the projects.

To set up the calculation, set up the field as follows:


The formula to use is the following:

CASE WHEN EXISTS (SELECT 1 FROM tblCustomEntity5 s1 WHERE s1.MasterKey IS NULL AND s1.V01 = tblEmployees.EmployeeKey AND s1.CE5ProjectKey IN (SELECT DISTINCT s2.CE5ProjectKey FROM tblCustomEntity5 s2 WHERE s2.MasterKey IS NULL AND s2.V01 = {UserEmployeeKey})) THEN -1

ELSE 0 END

Remember to amend the calculation to refer to the applicable field and entity keys:

  • CustomEntity5 - this needs to be replaced by the custom entity key for the configured Team Members entity;
  • CE5ProjectKey - this needs to be replaced by the project key for the configured Team Members entity;
  • V01 - this is the field name of the team member (employee list field) on the Team Members entity.



Step 2: Set up a Shared Filter

Using the calculated field created in step 1 of Part 3, the administrator can now set up a shared filter for employees that will allow each team member to see only their specific projects.

Go to Administration >> Filters (The filter will be applied for all user groups)

Click on the Add Employee Filter icon and set up the shared filter as follows:


Once the filter has been submitted the system will select the newly added shared filter as the active global filter, which is not desired. Open the filter dropdown list and select the blank space and click on the Submit icon.

Step 3: Set up Employee filters on Data Fields

With the shared filter created, it can now be activated on employee list data fields.

Note: this should not be done on the projects entity for the user will not be able to select any employees from the lists as no team members will have been assigned to the project at this stage.

Go to Administration >> Data Fields. Select the entity for which the filter needs to be applied e.g. Risks and select the employee list data fields to apply the shared filter:


This shared filter needs to be applied for all the entity data fields where employees will be assigned to items.
